Surgical hand-piece
J45’s unique 100% rear-exhaustion can completely avoid emphysema which causes pain and infection to patients.
Equipped with 25mm long bur, every little vibration will be amplified, and could eventually lead to bur fracture. J45’s minimized vibration greatly enhances the bur’s durability, and reduces patient’s pain.
45°

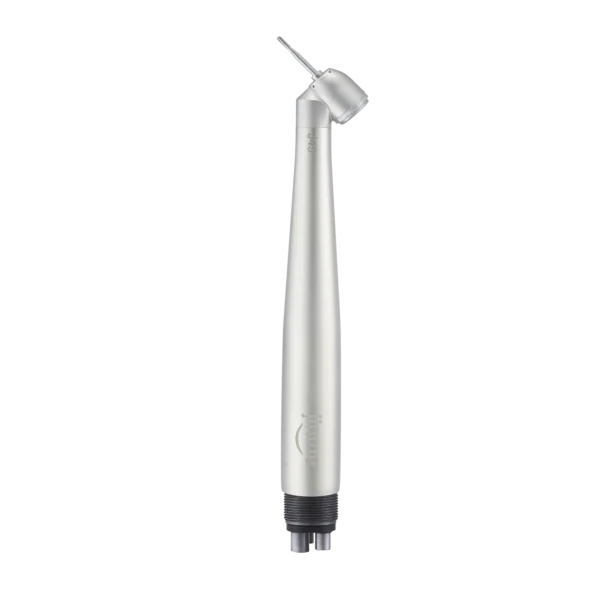

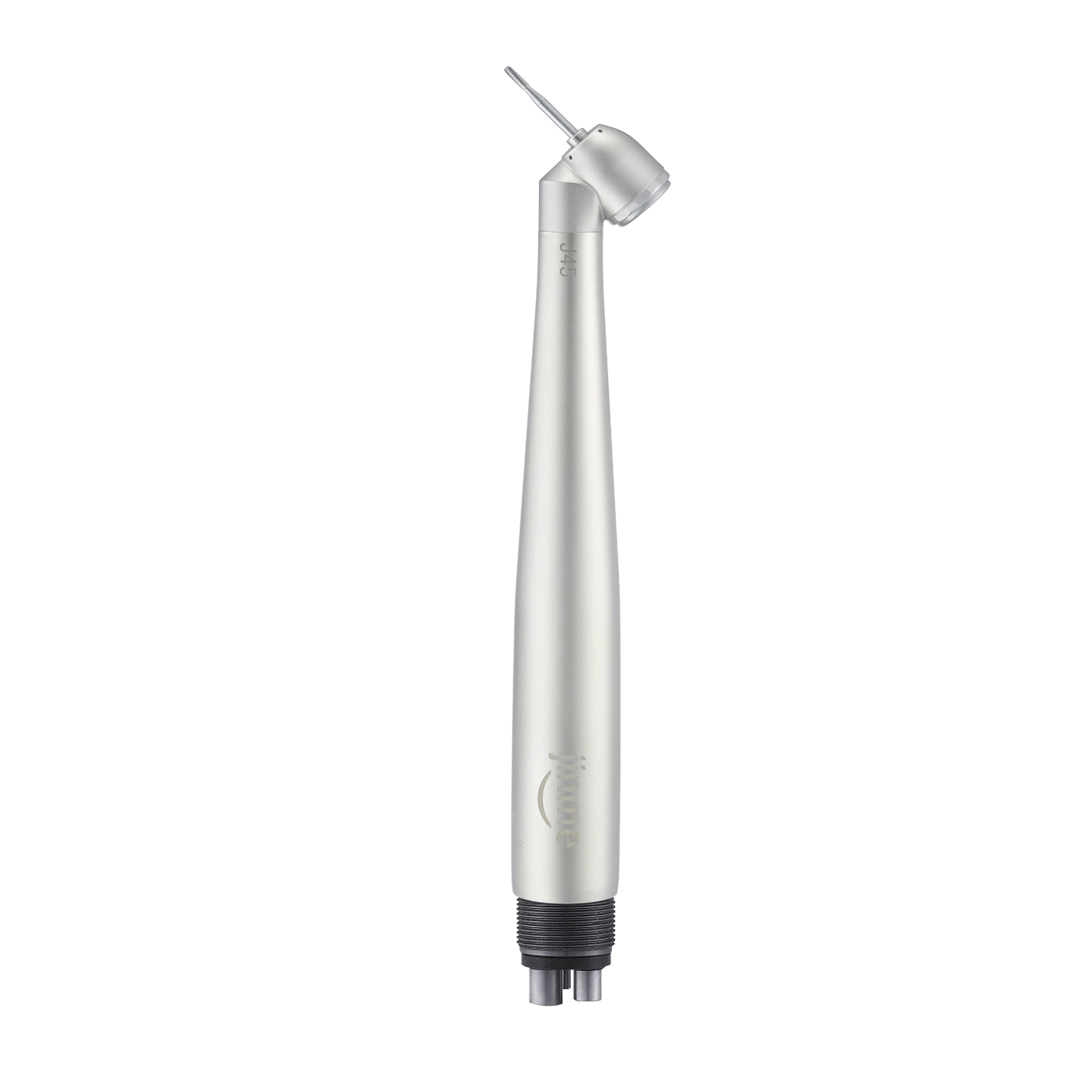

JINME 45 degree rear exhaust surgical hand-piece is a must have for every surgical dental procedure.

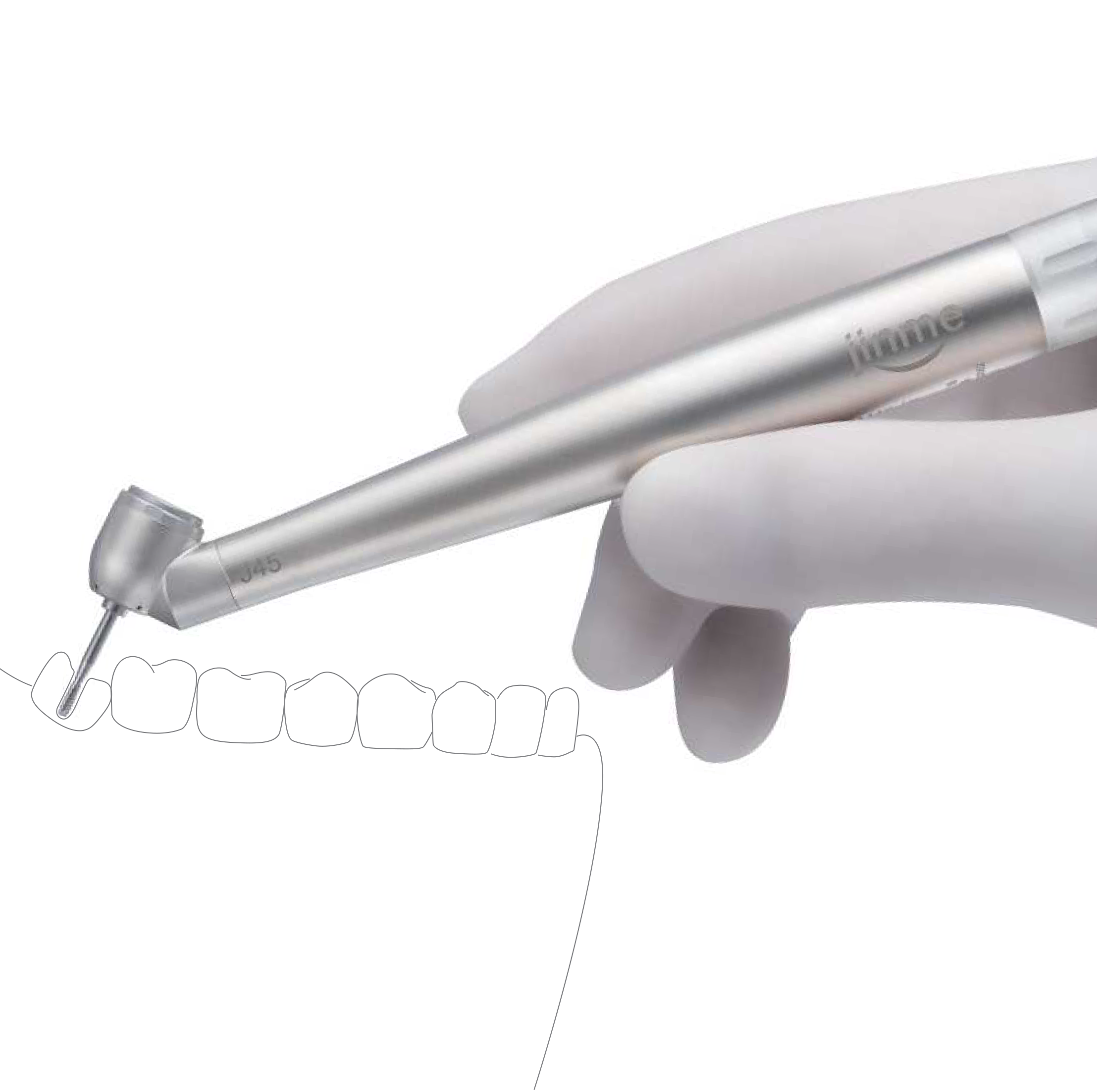

45 degree surgical hand-piece is characterized by stable rotation, zero air blowing underneath the hand-piece head and good performance in cooling effect. It can be used in any dental surgical procedure. especially applicable to alveolar bone removal, cutting and separating of impacted teeth in the deep.
Technology & Function
Working air pressure: 0.25~0.3MPa
Joint: 4 holes
Rotational speed: 330~420 krpm/min
Dimensions of handpiece head: Ø11.25mm × H13.5mm
Suitable bur: Handle diameter 1.590~1.600mm, Length 25mm
Spray mode: Single-point spray
Bearings: German bearings
Mode of bur changing: Push-button
Sterilization: No more than 135oC high temperature and high pressure steam sterilization
Features of J45-SU high speed air driven dental handpiece
1. Rear exhaust design
The J45-SU dental handpiece uses a rear exhaust design. The exhaust port is designed on the back of head with 100% no air blowing on the front, thus avoiding any potential postoperative complications. This handpiece is especially suitable for bone removal, including the cutting and separating of deep, impacted teeth.
2. Slighter vibration, effectively preventing the risk of medical accident caused by bur breaking
J45-SU dental handpiece vibrates in very small degree during high speed rotation, effectively avoiding bur breaking, thus avoiding the risk of surgical complications.
3. The rotational speed is stable and there is no high pressure air flow under the handpiece head. That means the dental handpiece can be used for minimally invasive tooth removal, and is also commonly used for more extensive procedures.
4. The use of an anti-suction system can prevent the suction of blood, virus and skin particles caused by negative pressure produced when handpiece stops operating, so that cross infection can be avoided. This also better protect the dental cartridge to avoid the damage of foreign matter to bearing, largely improving the service life of handpiece.
